| SMPS Adapters
Specification Sheet |
|
| PCB Name/ Description

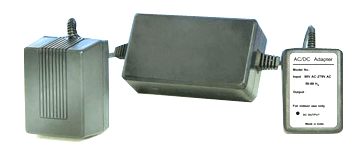

: Wall Mount adapters upto 15W in 2pin/3pin type ABS
box |
| INPUT |
|
| Description |
Output |
| AC
Input Voltage |
230V
AC |
| AC
Input Voltage range |
90V
AC to 270V AC |
| AC
Input frequency |
50Hz
to 60Hz |
| Inrush
Current |
<15A |
| OUTPUT |
|
| Description |
Output |
| Normal DC O/P Voltage |
|
| Minimum Load Current
|
|
| Maximum Load Current
|
|
| Maximum O/P Power |
|
| Ripple & Noise |
<60mV Peak to Peak |
| Under and Over Voltage
protection |
110% |
| Total O/P Regulation
|
<1% |
| Short Circuit protection
With auto recovery. |
Yes |
| O/p power Indications. |
O/p power on LED |
| Withstand Voltage |
1.5kV AC Between I/p
& O/p for 1min |
| |
1kV AC Between L, N
& E for 1min |
MECHANICAL
|
|
| Description |
Output |
| Dimensions (Approximate) |
upto 6W (70mm X 48mm X 35mm) |
| |
upto 15W (75mm X 55mm X 48mm) |
| I/P plug Type |
AC Plugin (2pin or 3pin) |
| O/P plug Type |
1.5mWire with Pin |
ENVIRONMENT
|
|
| Description |
Output |
| Operating temp |
Upto 60 deg.C at full load |
|
|
|
